Liquid-cooled Water Pump 380VAC 1500W for Data Centre Cooling System

Pump Major Parameters

Model No.: OWP-BL500H

Power Input:380VAC

Rated power:1500W

Rated Flow rate :200L/min @ H≥20M

Max Flow:300L/min

Max Lift Head:27M

---------------------------------------------------------------------------

Medium: glycol(50-60%)+water, dielectric oil,Electronic fluorinated solution

Medium temperature:

Working long hours guaranteed

-40℃ to +85℃ (-40°F to + 185°F)

Nozzle: 46mm

Speed Control:Yes

Fault Feedback signal:Yes

IP Grade:IP67

Noise:≤60dB

Service life:＞20000hours

Weight: 5.5kg

Pump Applications

EV motor cooling

EV motor controller cooling

Turbocharger intercooler pump

EV battery thermal management

EV Liquid-cooled charging cabinet

Battery energy storage cooling pump

Fuel cell cooling pump

water pump large-scale GPU cooling

Industrial cooling system

Immersion cooling

Communication base station cooling

Supercomputer cooling

Electricized engineering vehicles

IT fluid cooling solutions

Battery thermal manage

Features

◆Single-stage Centrifugal pump

◆Magnetic force transmission (shield pump structure)

◆High efficiency brushless DC motor, low power consumption, high efficiency, more than 20000hours service life.

◆With wide range operating temperature

◆PWM signal speed controlling

◆With constant flow controlling

◆Reverse polarity protection

◆Dry running protection

◆Over Voltage, over current protection

◆Overload, over temperature protection

Driving device (Including motor)

◆Driving electromagnet: nylon plastic capsulated magnet

◆Screws and nuts: SUS 304 stainless steel

Driving Motor : brushless motor

◆Motor winding frame :PPA GF

◆Pump housing: Die-casting aluminum case with sandblasting and impregnation treatment

◆Waterproof based on IP67 rating (en60529)

◆Connector model: AT04-3P-RD01

◆Nozzle:46mm

Our clients come from 36 countires with high reputation in their fields.

Pump Advantages

Professional electromagnetic theory design verification ,makes our pump motor 3-5% higher efficiency than other competitors.

Simulation calculation of hydraulic design by professional software makes our impeller and volute reach to the best match for higher hydraulic efficiency than others

Automotive grade electronic components makes our pump withstand extreme harsh operating environment

Software&Tools applied:

CFturbo/ANSYS FLUENT/Compile/Link/Debug/Simulate/Emulate/Program /SlikEdit, TestLink

Software guidelines:Code Check；SVN:SW version control system (PVCS)；Test plan/tests (white box, black box)；Internal audit & release

Pump Technical parameter

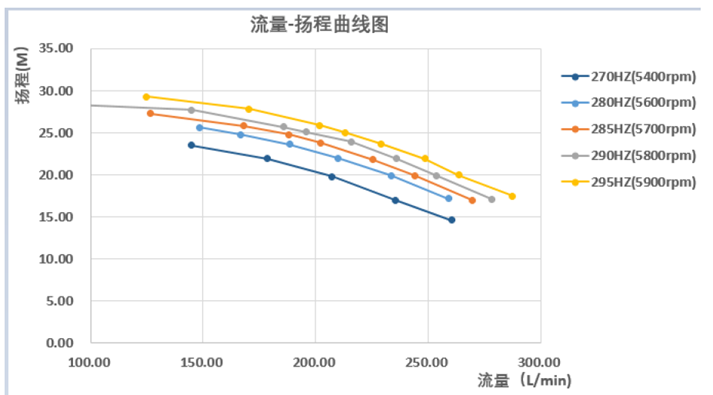

Performance

■Temperature parameter

Medium liquid temperature: -40℃ to +85℃ (-40°F to + 185°F)

Working ambient temperature: -40℃ to +85℃ (-40°F to +185°F) Humidity ≤90%

Storage temperature: -40℃ to +70℃ (-40°F to +158°F) (up to 100 ℃, but it will shorten the

service life)

■ System pressure

-99-350Kpa ( 100℃ (212°F).

The service life is more than 20,000 hours based on the rated voltage and 36℃(86°F) ambient temperature.

Pump overall size

380VAC electric coolant pump

Single stage centrifugal electric coolant pump

380VAC coolant pump electric
